Polarization measurement Manual stress measurement

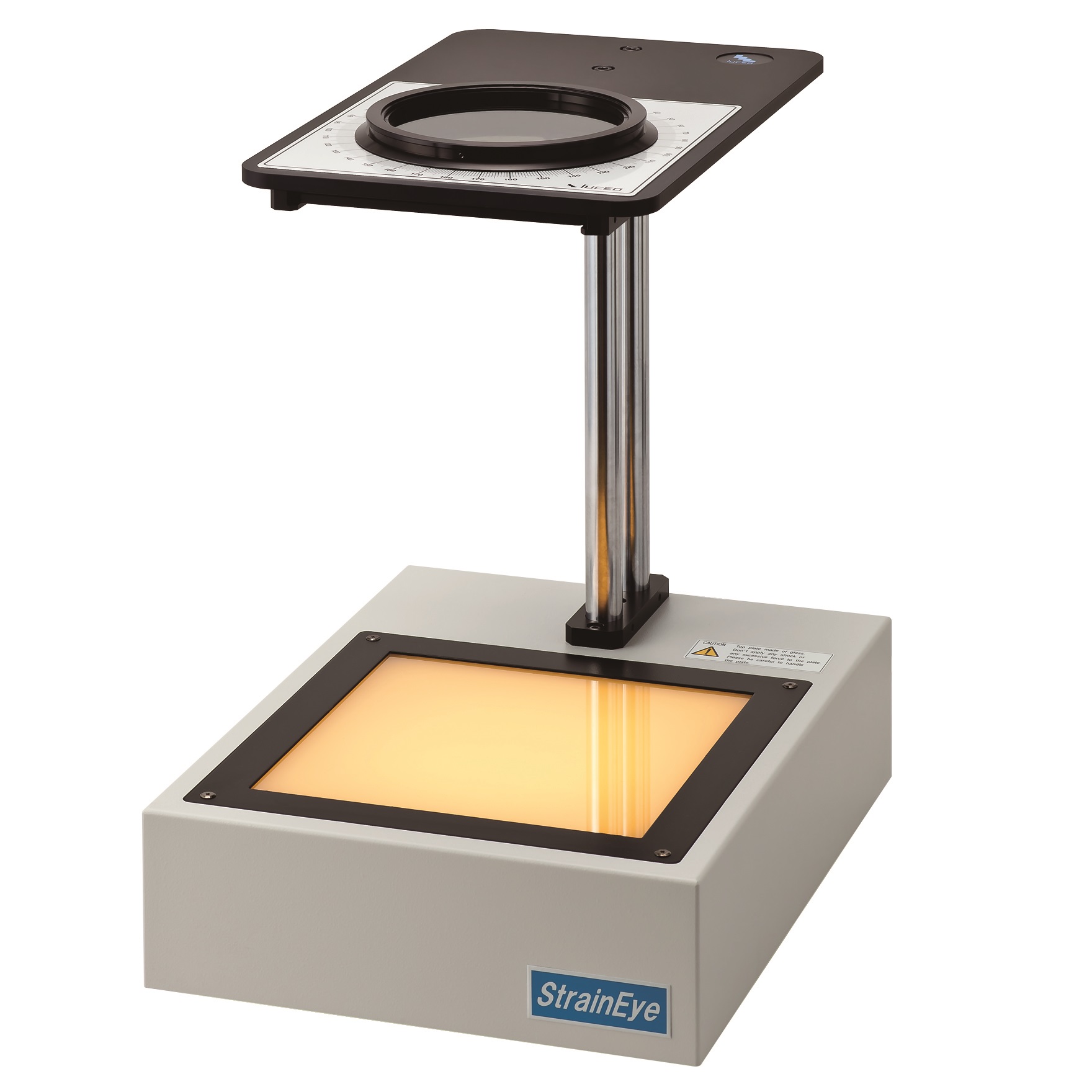

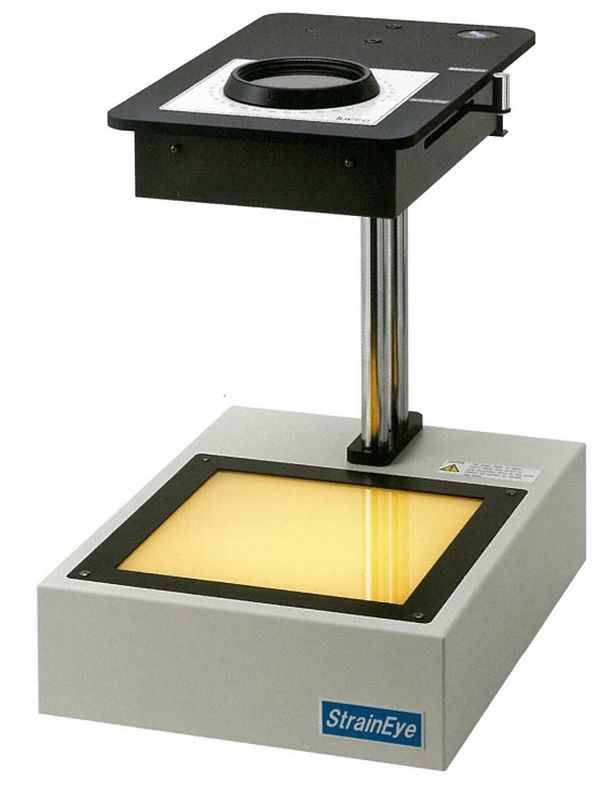

Desktop manual stress polarimeter

It is available to inspect and measure the strain in the glass or plastics.
5 type products belong to this series. Each product is available to inspect the pattern of strain or analyze the direction of stress or measure the stress. These have the view area sized 200 × 200 mm, therefore they are available to measure large sample.

Size: W280×D375×H430mm Weight: 12kg Inspection Method:Crossed Nicols Method (Option: Sensitive Tint Color Method / Senarmont Method,Circularly Polarizing Light Method)
Effective Dimension of Analyzer:φ110mm
Effective Dimension of Polarizer:W200×D200mm Light Source:LED WHITE 3000K Power Source:AC100~240V 50/60Hz
