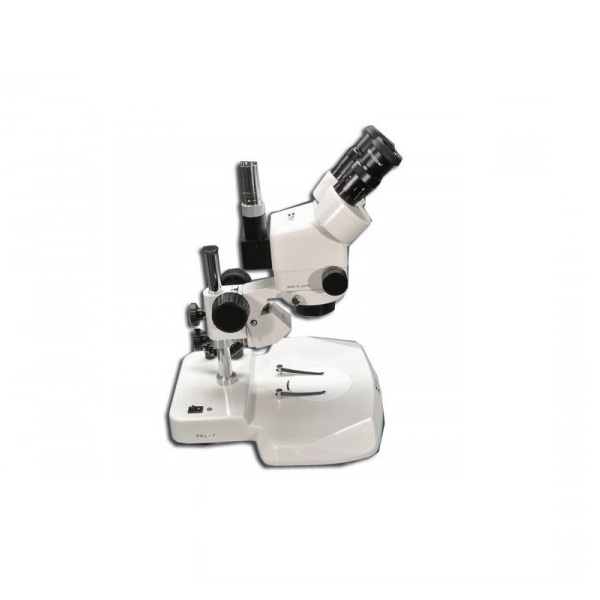

Trinocular Split type-EMZ-8TRH
High eye point design allows comfortable observation when wearing glasses
Eye point height 20.9mm
Trinocular 45 degree tilt stereo zoom 0.7-4.5X
The fuselage is made of aluminum forging, which is durable and not easy to deform
Camera tube (in accordance with JIS standard) does not need to switch the optical path
Direct beam splitting reaches both the binocular tube and the camera tube
With binocular parallax correction and pupil distance adjustment
Total magnification: 7-45X
Eyepiece: HSWF10X (field of view 23mm)
Objective lens: 0.7-4.5X (magnification ratio 1: 6.5)
Field of view: 32.8-5.1mm
Working distance 104 mm
Meiji Techno’s EM series provides the viewer with the best three-dimensionality and clarity
The color of the object to be observed will not be distorted, which is especially suitable for operators who need to use microscopic observation for a long time.
The equipment is durable and affordable.
