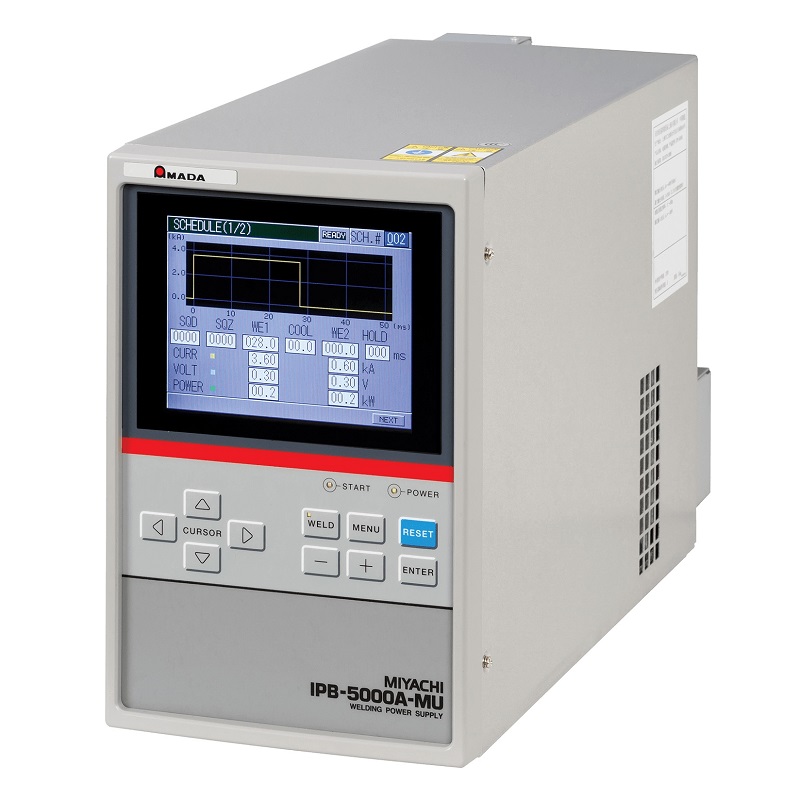

IBP-5000A
Four control modes for process optimization
for part manufacturing tolerances
GOOD / NO GOOD determination signals
if weld was successful providing instant feedback
Displacement measurement indicates the
amount of collapse the material exhibits
during the weld
Envelope feature - allows users to set
dynamic profile of limits around a setting
Technology High frequency inverter
Output Range Amps: 400 - 6,000
Volts: 0.30-9.99
kW: 0.2-20
Weld Period Range (ms) 500
Output Control Mode Current, voltage, power, combo
Open/ Closed Loop Closed
Built in Monitor Yes
Automation Ready Yes
Input Power 200-240 VAC
380 VAC
460 VAC
Single or 3 phase 3 phase
Size (L x W x H) 5.35 in x 6.77 in x 10.59 in (390 mm x 172 mm x 269 mm
Weight 33 lb (15 kg)
