ISQ20-3

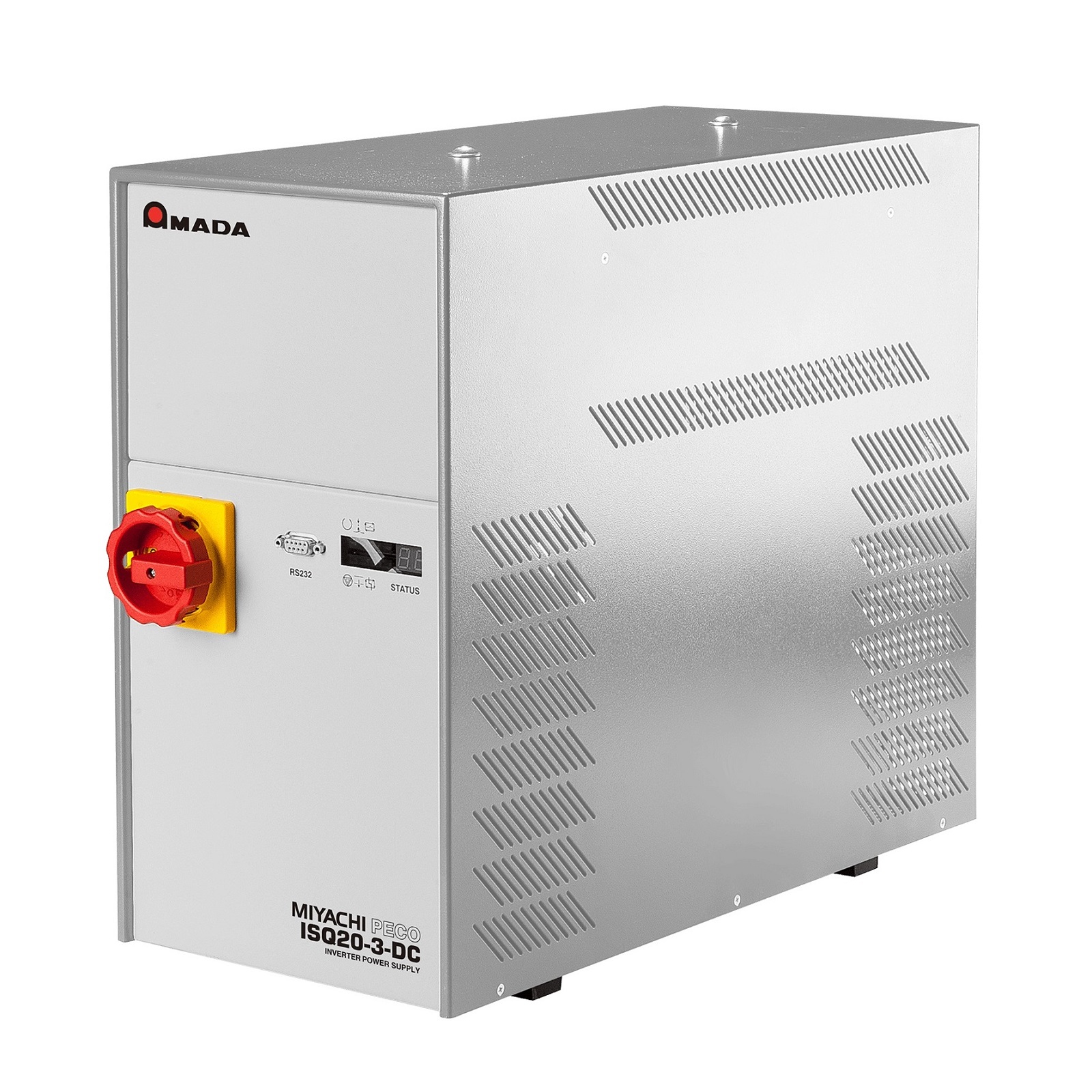

ISQ20-3 High Frequency Inverter Spot Welder

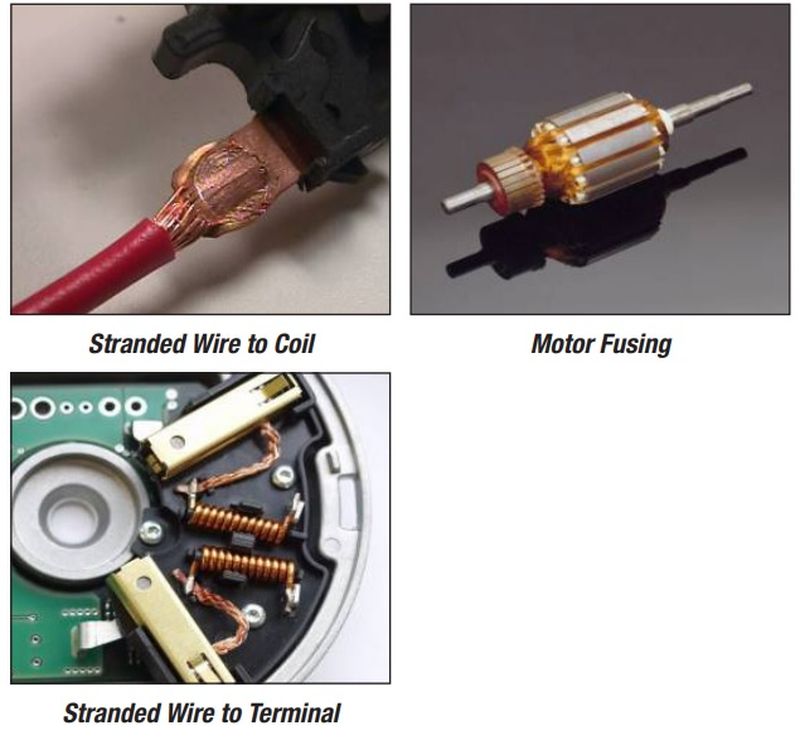

ISQ20-3 is a full-featured high frequency inverter spot welding power supply well-suited to automotive, electric/electronic industry applications requiring high end interfacing and high speed automation.
ISQ20-3 may be used in conjunction with one of our many weld heads as a single operator benchtop unit and is well-suited for integration into semi or fully automated resistance welding systems.
Up to 3000 A output
High speed (20 KHz) closed loop feedback for optimum process control
Constant current, voltage and power modes
Compact design ideal for integration
Technology High frequency inverter
Output Range Amps: 0.75 - 3,000
Volts: 0.1 - 9.99
kW: 0 - 29.97
Weld Period Range (ms) 320
Output Control Mode Current, voltage, power
Open/ Closed Loop Closed
Built in Monitor Yes
Automation Ready Yes
Input Power 230 or 400 VAC
Single or 3 phase 3 phase
Size (L x W x H) 8.5 in x 21.7 in x 16.5 in (216 mm x 550 mm x 420 mm)
Weight 73 lb (33 kg)
