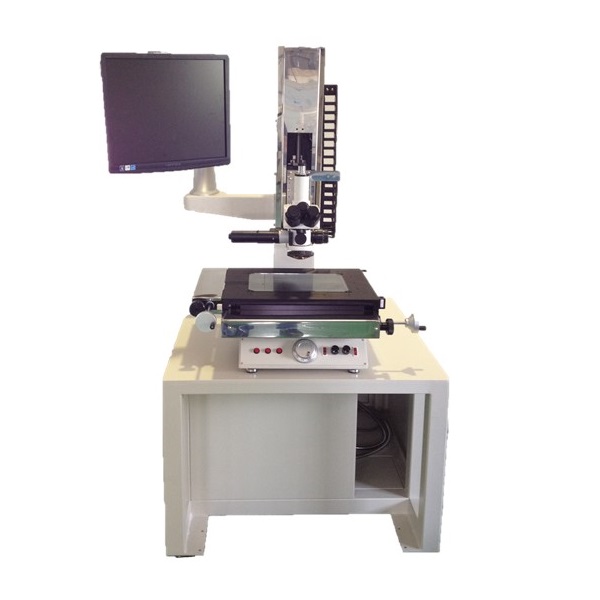

JLM-3300D Floor type
•JLM-3300D 落地型測量顯微鏡
•日製高解析金相光學系統
•穩固的鑄件機座結構無需自備工作桌
•配備XY雙軸精密級螺桿傳動量測台可快速移動
•同軸光源 21V 150W 可調式輪廓光源
•可依照需求搭配各式攝影機
•人性化電腦量測模式
•適用於大尺寸工件精密加工製造及需精密量測等產業
Specification:
Lens tube: Trinocular lens-Siedentopf type 30 ° tilt, pupil distance adjustment 53mm to 75mm, dioptric power on left glasses (30.0 mm ID glasses)
Eyepieces: SWH 10X wide-angle high-eyepoint eyepieces with crosshairs
BF/DF five-hole objective nose wheel
Objective lens: Plan Semi Apo Epi objective lens
BD 5X, NA 0.10, WD 17.0 mm, FN 22
BD 10X, NA 0.25, WD 7.48 mm, FN 22
BD 20X, NA 0.40, WD 5.20 mm, FN 22
BD 50X, NA 0.75, WD 0.38 mm, FN 22
Z axis adjustment: Electric controlled (3 speed selectable)
Coaxial light device, with rotating polarizer, infinity tube lens, focal length 200mm, LB, ND25 neutral density, single beam light guide
Light source: 21V 150W Halogen lamp type or LED type
Z axis: 100mm
