Welding processing equipment Special welding system Pulsed Micro TIGWelder

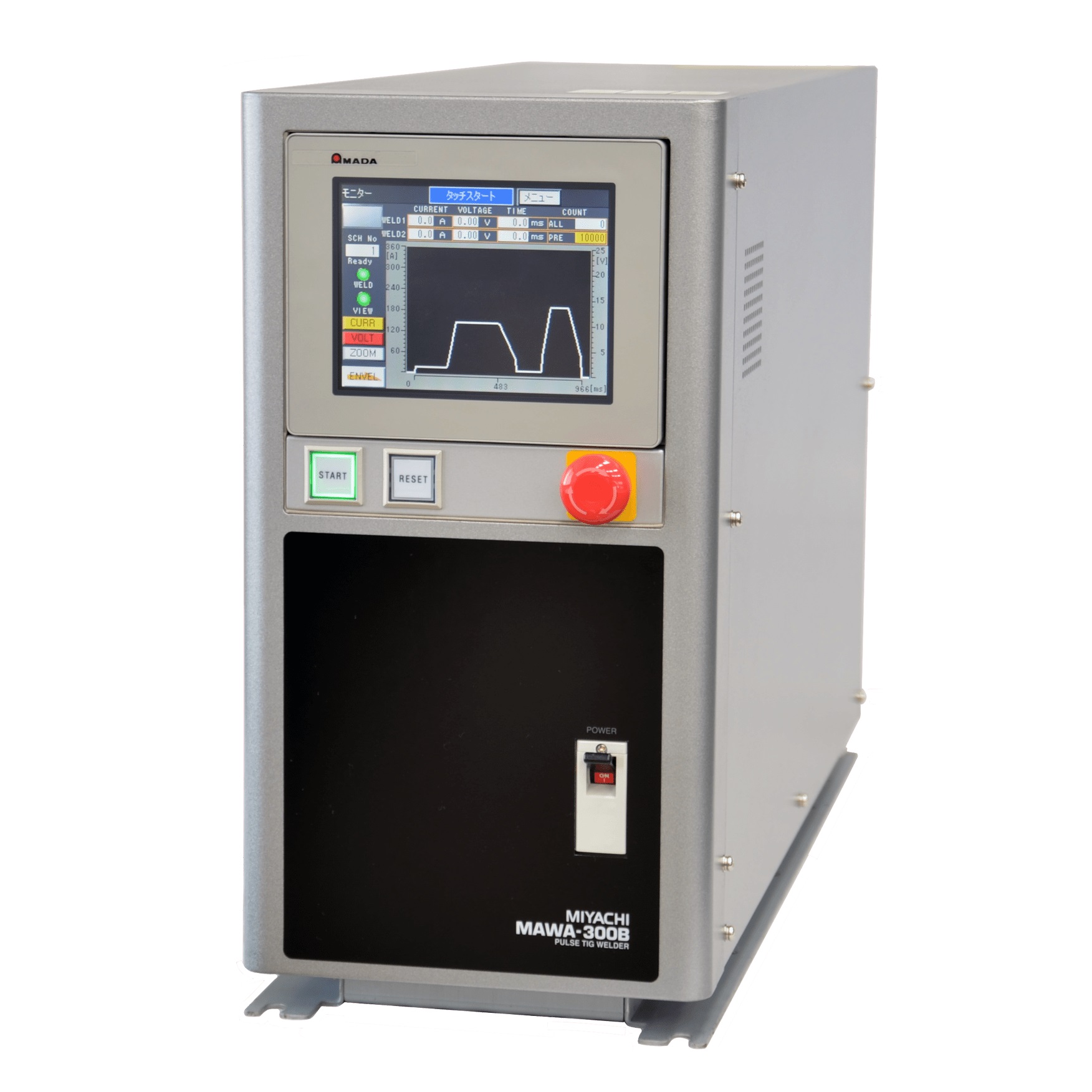

MAWA-300B Pulsed Micro TIG Welder

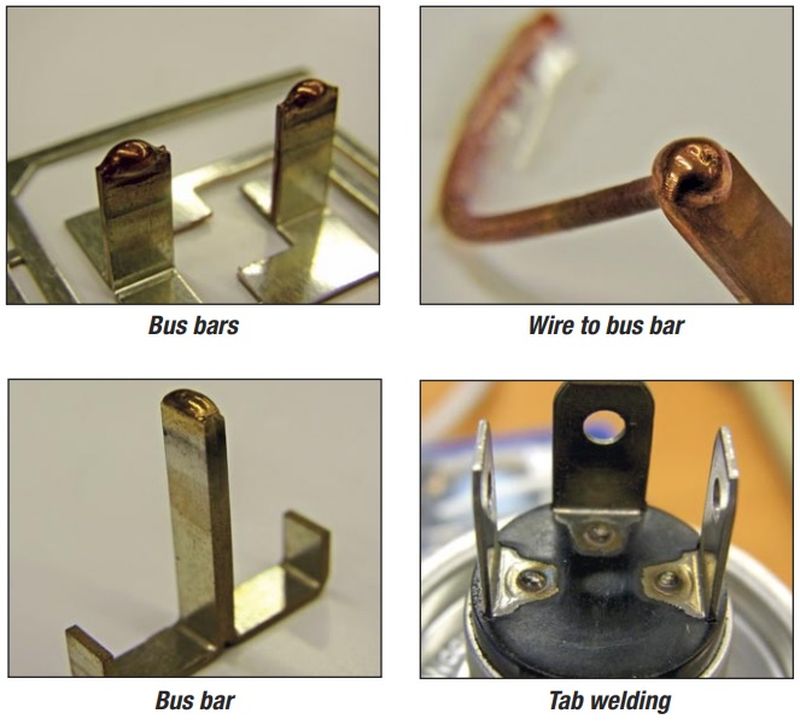

Weld dissimilar materials
Weld conductive metals
"Pulsation" feature significantly reduces porosity
"Touch start" feature controls and identifies weld location
Digital programming interface for easy control of pulse form
Multiple weld schedules

Technology Micro TIG
Start Mechanism HV and Touch start
Output Range Amps: 30 - 300
Pulsation Frequency (Hz) 1 - 5000
Input Power 208 VAC
Single or 3 Phase 3 Phase
Built in Monitor Yes
Automation Ready Yes
Size (L x W x H) 27.8 in x 8.3 in x 16 in (705 mm x 211 mm x 408 mm)
Weight 100 lb (45 kg)
