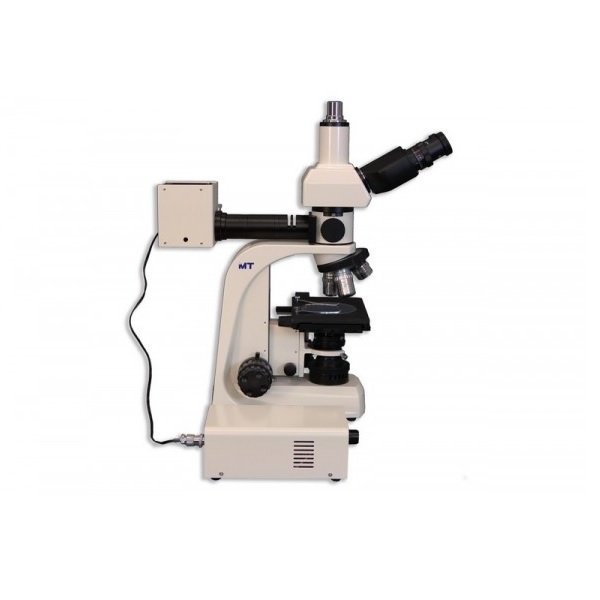

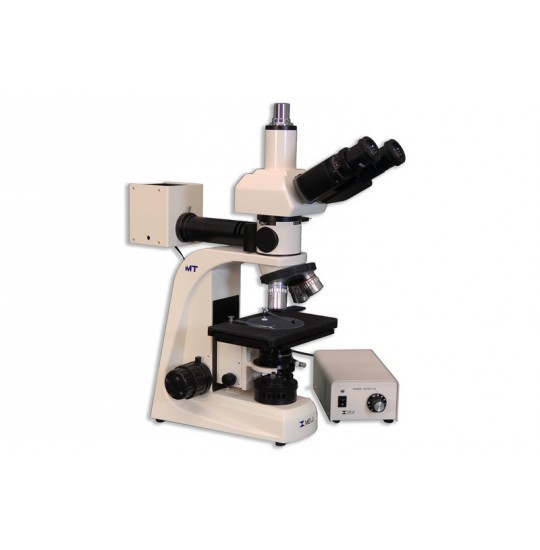

Brightfield and darkfield-MT-7500 / 8500
Epi BD objectives with high-resolution, high-contrast images.
Slender and long mechanism design, does not occupy space, is conducive to placement.
The outer ceramic material carrier is not easy to be contaminated with dust, easy to clean, and not easy to scratch.
Groove design, easy to replace and correct.
The focusing axis is designed near the base, which allows hands to easily observe for a long time without accidentally touching the sample stage.
With the same focal axis design, there is no need to adjust the focal length after changing the magnification under the focusing condition.
The voltage input is automatically adjusted, so it can be applied to 100V ~ 240V sockets.
The entire microscope is imported from Japan.
"Optical system : Infinity-corrected optical system (F = 200mm)
Trinocular tube : folded 30 ° tilted, pupil distance adjusted 53mm to 75mm
Camera lens barrel : C-mount conforms to JIS standard
Eyepiece : SWH10X (field of view 22mm)
Nose wheel : four-hole left-wheel ball bearing type
Objective lens : EPI Plane · BD achromatic lens
· 5X (NA0.10 WD17mm)
· 10X (NA0.25 WD7.48mm)
· 20X (NA0.40 WD5.2mm)
· 50X (NA0.75 WD0.38mm)
100X (NA0.9 WD0.37mm) optional
Stage : rack and pinion mechanical platform
Dimensions : 191mm x 128mm
Moveable range : 100mm x100mm
Ceramic coating of the lower right coaxial handle with transparent platform glass
Abbe condenser
Focusing device : coarse / micro handle (total stroke 23mm, micro handle 0.2mm)
lighting device
Reflected illumination : Halogen incident Kohler illumination (12V 50W)
Bright field, dark field, simple polarization observation
Transmission illumination : Halogen transmission Kohler illumination (6V 30W) including blue filter "
