Welding processing equipment Resistance Welding Capacitive Discharge (CD) Welders

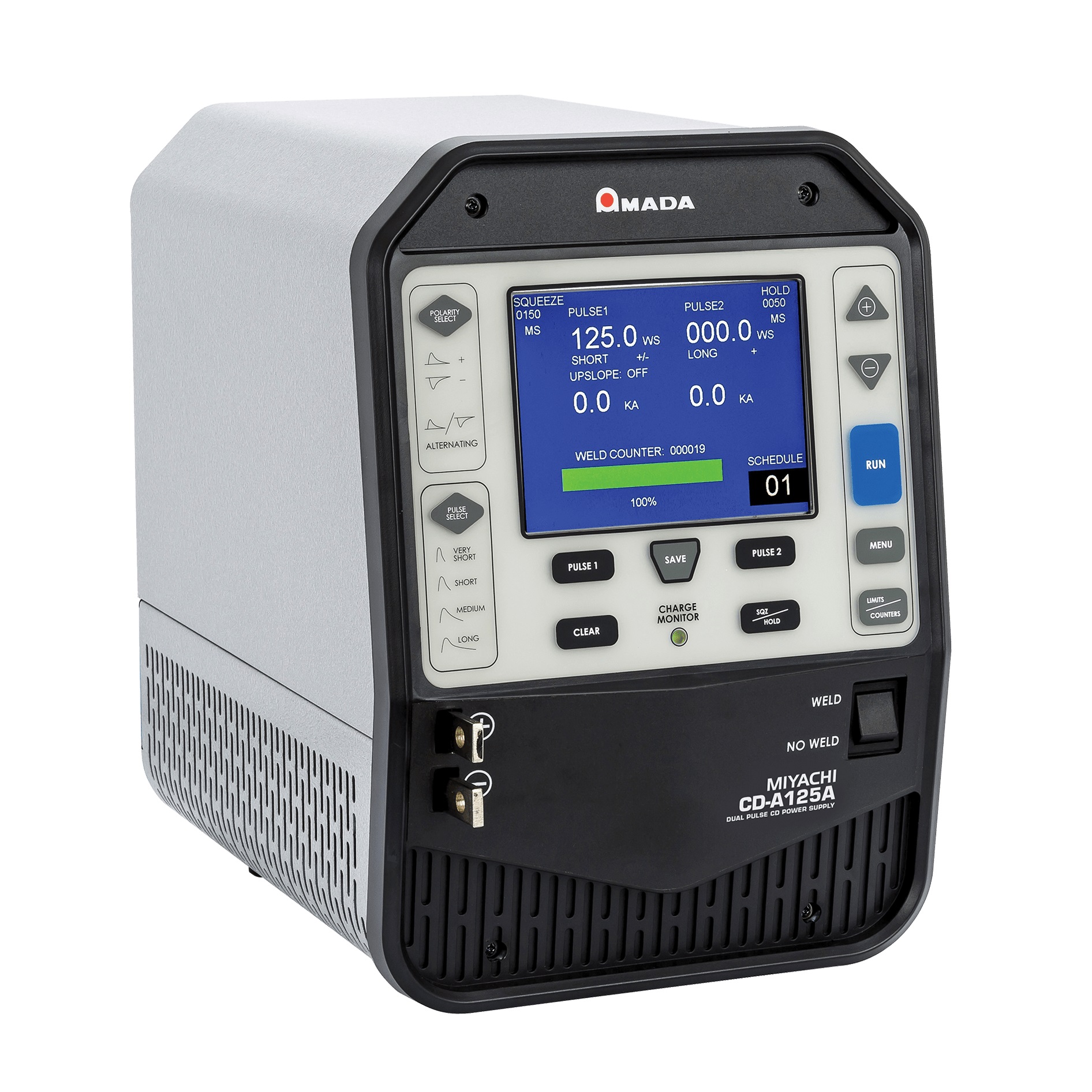

NEW CD-A125A/CD-A300A

Automation-ready,dual pulse welder
Built-in current monitor
Four pulse widths with fast rise times Automatic polarity switching

Technology Capacitive discharge
Output Range Ws: 3 - 300
Weld Period Range (ms) 2.4 - 12.2
Output Control Mode Ws
Open/ Closed Loop Open
Built in Monitor Yes
Automation Ready Yes
Input Power 90 -138 VAC
180 - 264 VAC
Single or 3 phase Single
Size (L x W x H) 15.25 in x 10.26 in x 14.76 in (388 mm x 261 mm x 375 mm)
Weight 69 lb (31 kg)
