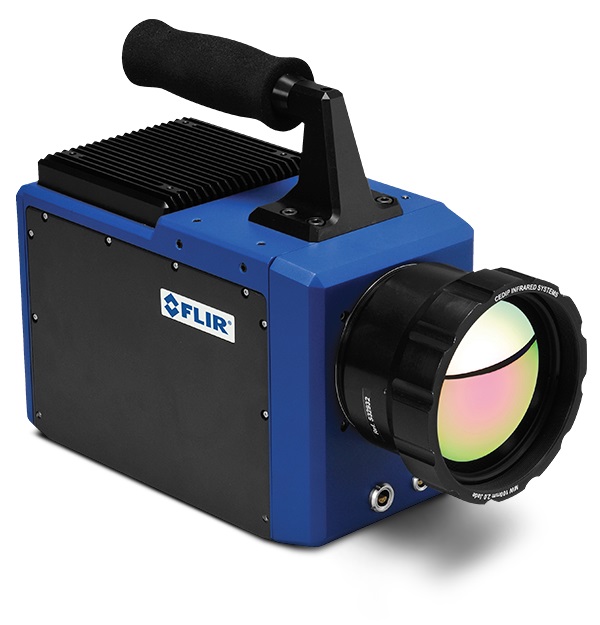

SC7000 Series LWIR Cameras
●CHOICE OF DETECTOR
The FLIR SC7000 Series is available with a wide range of detectors to address any application in single and multispectral analysis. The researcher has a choice between mid-wave Indium Antimonide (InSb) and Mercury Cadmium Telluride (MCT) detectors.
MCT detectors operating in the long-waveband are also available. The FLIR SC7000 series comes standard with a removable, motorized 4 position filter wheel. This allows imaging of events in a select part of the electromagnetic spectrum.The SC7000 series is available in 640 x 512 or 325 x 256 pixel formats with high
sensitivity and noise levels as low as 20 mK.
●ULTRA HIGH FRAME RATE WITH WINDOWING
Windowing allows a subset of the total image to be selectively read out with useradjustable window size at a much higher frame rate. The sub-sample window sizes and locations can be arbitrarily chosen and are easily defined using the camera control software. Depending on the model and detector, the FLIR SC7000 series can deliver thermal images up to a speed of 62,000 Hz.
●ADJUSTABLE INTEGRATION TIME & TRIGGERING
Integration time is adjustable in nanosecond increments. The smart external triggering feature allows synchronisation of the image capture to the most fleeting events.
●SOFTWARE
FLIR SC7000 Series works seamlessly together with FLIR ResearchIR Max software enabling intuitive viewing, recording and advanced processing of the thermal data provided by the camera.
●MULTIPLE DETECTOR OPTIONS
●ULTRA HIGH FRAME RATES WITH WINDOWING
●REMOVABLE FILTER WHEEL
●MULTIPLE VIDEO OUTPUTS
